NodeBox

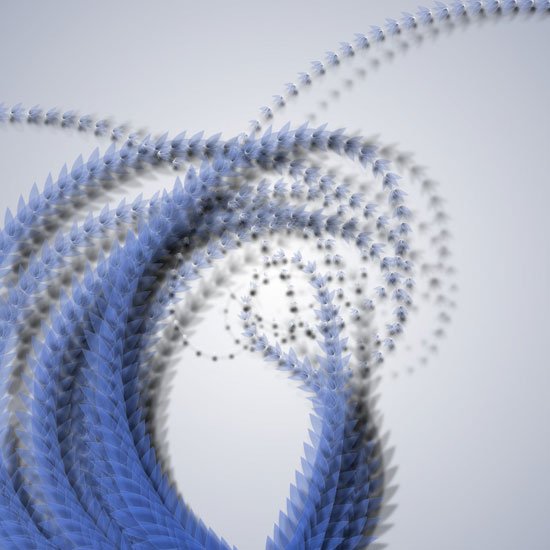

Growing things | kudzu

############################################################################

# Copyright (c) 2007 Tom De Smedt.

__author__    = "Tom De Smedt"
__version__   = "1.9.1"
__copyright__ = "Copyright (c) 2007 Tom De Smedt"
__license__   = "GPL"

#############################################################################

colors = ximport("colors")
supershape = ximport("supershape")
cornu = ximport("cornu")

# The geo library bundles the commands discussed in:
# http://nodebox.net/code/index.php/Math
from nodebox import geo

#############################################################################

def petal(clr, x=0, y=0, width=30, angle=90):
    """ A supershape teardrop rotated under given angle a.
    Its rotation point is at the bottom center of the shape.
    """
    push()
    translate(x-width/2, y)
    rotate(angle)
    translate(width*0.5, 0)
    thickness = random(0.2, 0.3)
    path = supershape.path(0, 0, width, width, 2, thickness, -0, 1)
    # Use the colors library to fill it with a gradient of clr.
    clr1 = clr.lighten(random(0.4))
    clr2 = clr1.darken(0.8)
    colors.gradientfill(
        path,
        clr2,
        clr1,
        type="linear",
        angle=90
    )
    pop()

def flower(clr, x=0, y=0, width=30, angle=90):
    """ Collection of four petals.
    """
    for i in range(4):
        petal(clr, x, y, width, angle-45+i*30)

#############################################################################

def offscreen(x, y, m=300):
    """ Returns True if (x, y) falls outside the visible canvas.
    """
    if x < -m or x > WIDTH+m or y < -m or y > HEIGHT+m:
        return True
    else:
        return False

def vine(clr):

    """ Draws flowers along an elegant Cornu curve.
    """

    nofill()
    stroke(1, 1, 1, 0.5)
    strokewidth(0.4)
    autoclosepath(False)

    # A smooth Cornu path starting bottom center,
    # and ending up somewhere in the center of the canvas.
    path = cornu.path([
        (0.5, 1.1),
        (random(0.3, 0.7), random(0.3, 0.7)),
        (random(0.3, 0.7), random(0.3, 0.7)),
        (random(0.4, 0.6), random(0.4, 0.6))
    ])
    # If you have an older version of the Cornu library,
    # you'll need the following two lines to convert
    # the flat path to Bézier-Curves:
    #path = [(pt.x, pt.y) for pt in path.points(20)]
    #path = findpath(path)
    drawpath(path)

    strokewidth(strokewidth()*0.5)
    # Calculate a number of points on the path depending on its length.
    n = path.length / 25
    for i in range(int(n)):
        t = 1 - float(i) / n
        pt = path.point(t)

        # Cornu curves can become very big so we need to check
        # if a point is visible before drawing flowers on it.
        # Otherwise this script will take forever to render.
        if not offscreen(pt.x, pt.y):
            # At each point we place a flower.
            # The further down the path,
            # the more desaturated and transparent flowers get.
            c = clr.desaturate(t * 0.5)
            c.alpha += (1-t)*0.1
            # The further down the path, the smaller flowers get.
            w = (1-t) * 80
            # Shadows gradually diverge from the stem,
            # adding to the sense of depth.
            colors.shadow(alpha=1.5*(1-t), dx=80-w)
            oval(pt.x-w/4, pt.y-w/4, w/2, w/2)
            # Draw a flower, rotating along the curve of the path.
            a = 360 - geo.angle(pt.x, pt.y, pt.ctrl2.x, pt.ctrl2.y)
            flower(c, pt.x, pt.y, w, a)

def kudzu(clr, vines=10):
    """ Many vines make up a plant.
    """
    for i in range(vines):
        vine(clr)

#############################################################################

size(800, 800)
clr = colors.color(0.3, 0.5, 1.0, 0.2)

# Gradient background.
colors.gradientfill(
    rect(0, 0, WIDTH, HEIGHT, draw=False),
    clr.darken(0.6).desaturate(0.0),
    color(1),
    spread=0.75)

kudzu(clr, 10)
